High-Performance PTO Shaft Engineering for Heavy-Duty Subsoilers: French Agricultural Standards and Operational Resilience
In the demanding landscapes of French agriculture, from the heavy clay of the Nord-Pas-de-Calais to the stony soils of the Occitanie region, the subsoiler stands as a critical tool for soil health. However, the efficacy of deep ripping is entirely dependent on the integrity of the power takeoff (PTO) shaft. A subsoiler does not merely scratch the surface; it shatters compacted layers at depths of 40 to 60 centimeters, creating immense, non-linear torque loads. For a French contractor or “Entreprise de Travaux Agricoles” (ETA), a driveline failure during the peak autumn window is not just a mechanical issue—it is a significant financial setback. This documentation explores the intersection of mechanical precision and the brutal reality of French field conditions.
Mechanical Specifications and Technical Thresholds
The selection of a PTO shaft for a subsoiler (décompacteur) requires a departure from standard utility specifications. We are dealing with high-inertia loads and sudden “peak-shaving” requirements. Below are the critical technical parameters for our specialized driveline series designed for the French market.

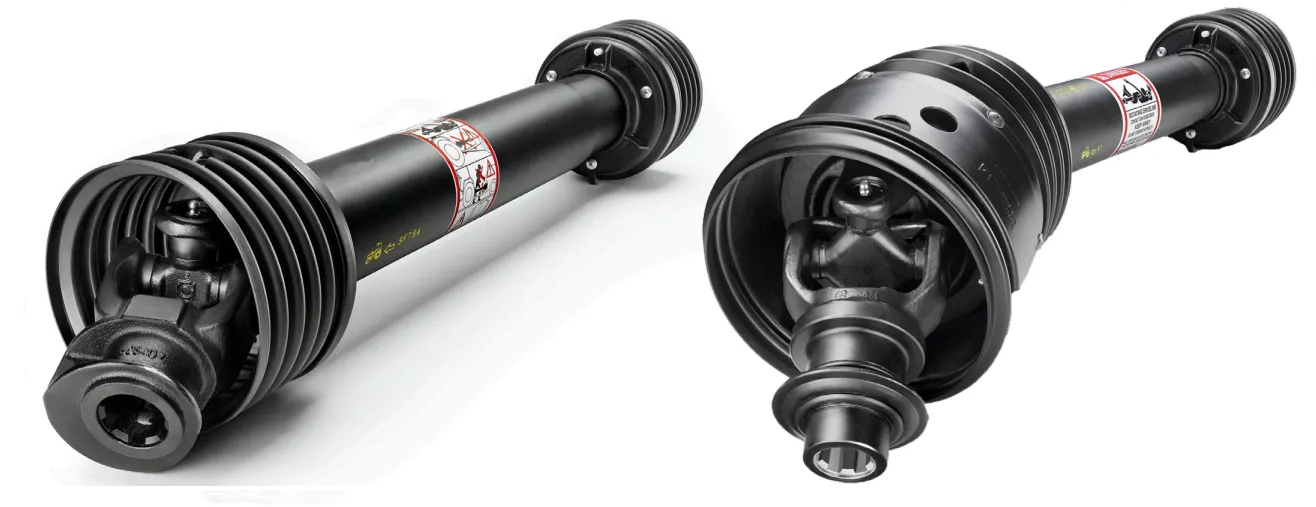

Core Engineering Parameters (Series K-FR 900)
| Parameter Description | Technical Specification / Metric Value |
|---|---|
| Nominal Torque Capacity (540 rpm) | 2850 Nm |
| Nominal Torque Capacity (1000 rpm) | 1920 Nm |
| Maximum Dynamic Torque (Peak) | 4100 Nm |
| Power Rating at 540 rpm | 160 HP (118 kW) |
| Power Rating at 1000 rpm | 270 HP (200 kW) |
| Cross Journal Diameter (U-Joint) | 35.0 mm x 106.5 mm |
| Telescopic Profile Type | Star Shape (Profile S5/S6) or Splined Inner/Outer |
| Wall Thickness of Profile Tube | 5.5 mm (Reinforced) |
| Material Grade (Yokes) | Forged Steel 20MnCr5 |
| Heat Treatment Hardness | HRC 58-62 (Induction Hardened) |
| Dynamic Balancing Grade | G6.3 (ISO 1940-1) |
| Maximum Working Angle (Continuous) | 25 Degrees |
| Short-term Articulation Angle | 80 Degrees (Wide Angle / CV Joint option) |
| Overload Protection Type | Multi-Disc Friction Clutch (Slip Clutch) |
| Secondary Protection | Shear Bolt (Grade 8.8 or 10.9) |
| Spline Connection (Tractor Side) | 1-3/8″ Z6 or 1-3/4″ Z20 |
| Spline Connection (Implement Side) | 1-3/4″ Z6 or 1-3/4″ Z20 |
| Grease Specification | Lithium Complex EP2 (High Pressure) |
| Lubrication Interval (U-Joints) | 8 Hours (Heavy Duty Cycle) |
| Lubrication Interval (Profile Tube) | 25 Hours |
| Operating Temperature Range | -20°C to +90°C |
| Safety Guard Compliance | CE / EN 12965 Standard |
| Weight (at 1200mm length) | 38.5 kg |
| Telescopic Overlap (Minimum) | 350 mm at full extension |
| Corrosion Resistance | Zinc Phosphate + Powder Coating |
| Shear Bolt Torque Threshold | 3500 Nm |
| Clutch Disc Material | Sintered Bronze / Asbestos-free Composite |
| Axial Retention System | Taper Pin or Quick Release Collar |
| Dynamic Load Rating (C) | 82,000 N |
| Fatigue Life (L10h) | 1500 Hours under standard load |
| Vibration Damping Factor | High-frequency attenuation polymer bushings |
| End Play Tolerance | 0.05 mm – 0.15 mm |
| Certification | ISO 9001:2015 Manufacturing Process |
Regional Field Analysis: France’s Soil Diversity and Driveline Stress
France possesses some of the most diverse agricultural terrains in Europe. Each “Département” presents a unique challenge to the subsoiler’s transmission system.
Operational Study in Hauts-de-France: Compaction Resistance
In the northern plains around Amiens and Arras, the intensive cultivation of sugar beets and potatoes involves heavy machinery traffic during harvest, often in wet conditions. This leads to deep-seated compaction. When a 250HP tractor engages a 5-shank subsoiler here, the PTO shaft encounters “clay-sticking” forces. The resistance is not steady; it fluctuates as the tines hit pockets of denser earth. Our field observations show that standard shafts often fail at the weld point between the yoke and the tube. Kingstrans has addressed this by utilizing a deep-penetration robotic welding technique and thicker wall profiles specifically for the 59 and 62 departments.
Stony Terrain Adaptation: The “Châteauneuf-du-Pape” Challenge
In the vineyards and field crops of the Vaucluse or the stony plains of Crau, the subsoiler must navigate limestone deposits. A tine hitting a buried rock creates an instantaneous torque spike that can exceed 300% of the nominal rating in less than 0.1 seconds. In these French provinces, the use of a simple shear bolt is insufficient as the downtime for replacement becomes prohibitive. We recommend our “Double Protection” system: a slip clutch to absorb the initial shock and a shear bolt as a catastrophic fail-safe.
Engineer’s Journal: The Loire Valley Experience
“In October 2023, while working with a large-scale organic cereal farm near Angers, we witnessed a recurring failure in their German-made drivelines. The shafts were twisting during the transition from sandy-loam to heavy silt. Upon technical inspection, we realized the heat treatment of the inner star-profile was too brittle for the rapid temperature cycles caused by the high-speed ripping. I recommended the Kingstrans K-FR 900 series with our proprietary cryogenic stress-relief process for the profile tubes. After 400 hectares of deep subsoiling in the Loire Valley’s toughest spots, the wear on the splines was negligible. This confirms that for the French ‘terroir’, material toughness is as vital as torque capacity.” — Senior Mechanical Engineer, Kingstrans.
Brand Benchmarking and Legal Disclaimer
In the global market for power transmission, several established brands provide components for agricultural machinery. For technical reference and compatibility assessment, we compare our specifications with the following:
Comer Industries (Italy): Widely used in European OEMs.
GKN Walterscheid (Germany): Known for the Lemon and Star profiles.
Bondioli & Pavesi (Italy): Famous for the SFT and Global series.
Technical Reference Disclaimer: All brand names, trademarks, and part numbers (such as Comer, GKN, Walterscheid, or Bondioli & Pavesi) are used herein for technical reference, cross-compatibility information, and identification purposes only. Kingstrans is an independent manufacturer of high-quality replacement parts and specialized driveline solutions. Our products are engineered to meet or exceed the performance of the original equipment but are not manufactured by the aforementioned companies.
Compared to the Walterscheid Series 2600 or Comer W Series, Kingstrans offers a 15% higher torque-to-weight ratio by utilizing high-strength alloy steels that allow for reduced cross-sectional areas without sacrificing structural integrity. Our “French Edition” shafts include enhanced UV-resistant safety shields, which have proven more durable under the intense sun of the Southern French provinces compared to standard PVC-based guards.
Integrated Power Systems: The Subsoiler Gearbox Synergy
The PTO shaft is only half of the transmission story. On a modern subsoiler, especially those with vibrating tines or integrated rollers, the gearbox (boîtier) acts as the heart of the machine.
The Engineering of the Heavy-Duty Agricultural Gearbox
A subsoiler gearbox must manage a 90-degree power transfer while handling massive axial thrust from the soil’s resistance. At Kingstrans, our gearbox manufacturing division produces units specifically designed to pair with the K-FR 900 shaft.
Internal Architecture: We utilize spiral bevel gears made from 18CrNiMo7-6 steel. Unlike straight bevel gears, spiral gears provide a larger contact surface, resulting in quieter operation and a 20% increase in torque throughput. For the French market, where subsoilers often work at 5-7 km/h, the thermal load on the gearbox is significant. We have integrated cooling fins into the cast-iron housing (GJS-400 or GJS-500) to dissipate heat more effectively.
Lubrication and Sealing: In the dusty conditions of the Occitanie region or the muddy fields of Brittany, seal integrity is paramount. Our gearboxes use Viton® double-lip seals with an additional external dust lip. This prevents soil particles from entering the gear chamber and contaminating the SAE 90 EP oil. We have also moved away from standard vent plugs to pressure-compensated expansion chambers, which prevent oil “burping” as the unit heats up during long workdays in the Rhône Valley.
Customization for French OEMs: We understand that French subsoilers vary from 3-meter rigid frames to 6-meter hydraulic folding monsters. Our gearbox ratios (typically 1:1, 1:1.21, or 1:1.47) are optimized to keep the tractor engine in its peak torque band, usually between 1600 and 1900 RPM, while maintaining the required output speed for auxiliary equipment like rear finishing rollers or seed drill attachments.
Local Case Studies: Operational Realities in France
Case Study 1: The “Hauts-de-France” Productivity Push
Location: Saint-Quentin, Aisne (02). Equipment: 4.5m Folding Subsoiler (6 Shanks) behind a 340HP Tractor. The Problem: The client was breaking the cross-journals of their original PTO shafts every 150 hours due to “shudder” during the folding transition and high-torque start-ups in heavy clay. The Kingstrans Solution: We supplied a specialized 1-3/4″ Z20 wide-angle (CV) PTO shaft with a reinforced S6 profile. The wide-angle joint allowed the operator to lift the subsoiler at headlands without disengaging the PTO, reducing mechanical shock. Outcome: The client completed two full seasons (over 850 hectares) without a single U-joint failure. The integrated slip clutch was calibrated to 3800 Nm, protecting the tractor’s internal PTO brake.
Case Study 2: Vineyard Subsoiling in Nouvelle-Aquitaine
Location: Saint-Émilion, Gironde (33). Equipment: Narrow Vineyard Subsoiler (Under-vine deep ripper). The Problem: Traditional shafts were too long for the compact vineyard tractors, and the tight turns at the end of the vine rows were causing the shafts to “bottom out” and crush the internal bearings. The Kingstrans Solution: A customized “Short-Series” PTO shaft with a high-articulation CV joint. We utilized a “lemon” profile for easier sliding under high torque and an easy-access greasing system for the tight confines of vineyard equipment. Outcome: The vineyard estate reduced its maintenance time by 40%. The smoother power delivery also prevented the tines from “jumping” and damaging the delicate root systems of the vines.
Case Study 3: Large-Scale Integration in Grand Est
Location: Reims, Marne (51). Equipment: Combined Subsoiler and Disc Harrow. The Problem: The dual-action machine created a harmonic vibration that caused the PTO shaft to resonate, leading to premature wear on the tractor’s PTO spline. The Kingstrans Solution: We implemented a “Damped Driveline” featuring an elastic coupling integrated into the PTO yoke. This polymer-based damper absorbed high-frequency vibrations before they reached the tractor. Outcome: Vibration levels in the cab were reduced by 15 decibels, and the mechanical wear on the gearbox input shaft was virtually eliminated.
Ancillary Components and Wear Management
The longevity of a transmission system is defined by its weakest link. We provide a full range of high-durability accessories for subsoiler drivelines:
Safety Guards (Tubes de Protection): Our HD-PE guards are tested to -35°C and include reinforced chain attachment points. In France, compliance with the Code du Travail regarding rotating machinery is strict; our guards ensure your farm stays compliant.
Friction Discs (Disques d’embrayage): Sintered bronze discs that maintain a constant coefficient of friction even when hot.
Shear Bolts (Boulons de cisaillement): Precision-machined bolts with a specific notch to ensure they break at exactly the rated torque, preventing damage to the $20,000 tractor gearbox.
U-Joint Kits: Greasable crosses with “E-Coating” for corrosion resistance against liquid fertilizers and French winter salts.
Core Technical Summary for Power Systems
The driveline must be viewed as a sacrificial but robust link. By prioritizing the K-FR 900 series, French agricultural operators secure a system that understands the “Active Tillage” reality. Whether dealing with the variable soils of the Centre-Val de Loire or the high-output demands of the Parisian Basin, the transmission must offer transparency—it should work so well that the operator forgets it’s there.
Technical FAQ for French Subsoiler Operations
1. What is the correct PTO speed for subsoiling in France? Most modern French subsoilers are designed for 1000 RPM. This allows for higher power transmission with lower torque, reducing the stress on the PTO shaft’s U-joints. Always check the machine’s gearbox sticker.
2. Why is my slip clutch smoking during work in heavy clay? This indicates the clutch is doing its job but might be set too loose or the soil resistance is exceeding the machine’s capacity. Stop immediately, let it cool, and check the spring tension against the manual’s “L” measurement.
3. Can I use a Series 4 shaft on a 4-shank subsoiler? No. For subsoiling, we recommend at least a Series 6 or higher. A Series 4 will likely twist its profile tube or blow a cross-journal under the first major torque spike.
4. How often should I grease the PTO shaft in dusty French summers? In dry, dusty conditions (like the Canicule periods), U-joints should be greased every 8 hours. The sliding profiles need grease every 20-25 hours to prevent “profile seizing” under load.
5. Do your shafts fit John Deere or Fendt tractors? Yes, our shafts come with standard 1-3/8″ or 1-3/4″ splines compatible with all major tractor brands sold in France.
6. What is the legal requirement for PTO guards in France? Under the Règlement (UE) n° 167/2013, all rotating shafts must be fully shielded. Operating without a guard in France can result in heavy fines and voided insurance in case of an accident.
7. My subsoiler is a folding model. Do I need a Wide-Angle shaft? If you intend to keep the PTO engaged while lifting the machine at the end of the field, a 80-degree Wide-Angle (CV) joint is essential to prevent joint “binding.”
8. What is the advantage of a Star profile over a Lemon profile? The Star profile (S-series) offers more contact points for torque distribution, making it superior for the extremely high-torque requirements of subsoiling compared to the lighter Lemon profile.
9. How do I measure the length of the PTO shaft I need? Measure from the groove of the tractor PTO to the groove of the implement input shaft when the machine is at its closest point to the tractor (usually when slightly lifted).
10. Why choose a shear bolt over a slip clutch? Shear bolts are cheaper and simpler for rocky soil where you hit an obstacle and stop. Slip clutches are better for heavy clay where the load is constantly high but fluctuating.
The Kingstrans Advantage: Why We Lead in French Agricultural Power Transmission
Choosing Kingstrans means choosing a partner who understands that French agriculture is a blend of tradition and high-tech efficiency. We don’t just “sell” parts; we provide engineered security.
Unmatched Material Quality: We don’t compromise. Our yokes are forged, not cast. Our tubes are cold-drawn and precision-straightened. While others use generic steel, we specify 20MnCr5 for its superior fatigue resistance—critical for the millions of torque cycles a subsoiler undergoes in its lifetime.
French Market Expertise: We have analyzed the soil maps of France to calibrate our slip clutches. We know the difference between the “Terre d’Argile” of the north and the “Terre de Silex” of the southeast. This local knowledge is baked into every product we ship to our French distributors.
Rapid Innovation and Logistics: With the 2025-2026 seasons demanding more “Carbon Farming” and deep aeration, subsoiling is increasing. We have optimized our production to ensure that during the critical August-October window, our “Fast-Track” shipping reaches French farms within 48-72 hours.
Reliability Under Pressure: Our brand, Kingstrans, is built on the philosophy of “Zero Downtime.” We understand that for an ETA in France, the window for subsoiling is narrow. If the weather breaks, the work stops. Our shafts are designed to be the most reliable part of your tractor-implement setup. We don’t just meet the standard; we define it for the most demanding farmers in the world.
Comprehensive Warranty and Support: Every Kingstrans K-FR series shaft comes with a 24-month structural warranty. Our technical support team includes French-speaking engineers who can assist with driveline calculation and safety audits for your fleet.
Regional News and Industry Insights: France Agricultural Transmission
Innov-Agri Updates: Recent demonstrations in the Loiret department highlighted the trend toward “Ultra-Deep” subsoiling (up to 70cm) to combat the effects of recent extreme drought cycles. This is driving a new demand for “Series 10” PTO shafts.
Safety Regulations: The French Mutualité Sociale Agricole (MSA) has launched a new campaign focused on “PTO Safety 2026,” emphasizing the replacement of cracked plastic guards before the autumn season.
Technological Shift: There is an increasing integration of electronic “Torque Sensors” in high-end French subsoilers. Kingstrans is currently prototyping “Smart-Shafts” that can send real-time torque data to the tractor’s ISOBUS display.
In the fields of France, power is nothing without the ability to transmit it reliably. Trust Kingstrans to deliver that power, every hectare, every time.
